Againity’s robust ORC systems that converts heat into electricity

ORC technology

We convert low grade heat into clean electricity in a simple and profitable way.

Againity utilizes low temperature heat and converts it into clean electricity using our patented ORC system, Organic Rankine Cycle technology. The system can operate from temperatures as low as 80 °C while maintaining short payback time even for smaller systems.

The ORC system is driven by the pressure of an organic working fluid. The rotating turbine drives a generator that produces electricity. The working fluid is heated in the evaporator using hot water or another heat source above 80 °C. After expansion, the vapor is cooled in the condenser and the heat is transferred to a district heating network, local heating network or cooling circuit.

Total system efficiency has been measured at up to 99.5 %, meaning nearly all supplied heat is utilized as either electricity or useful heat.

The ORC system is delivered as a complete unit for connection to heat source, cooling and grid. Automatic operation and remote monitoring via TCP IP ensure reliable performance. Few moving parts minimize service requirements.

Againity ORC systems are available from 50 to 10 000 kWe and can be installed in parallel for higher output.

Installed capacity is adapted to each project. Units are delivered pre assembled and ready for connection to hot water or steam and cooling water.

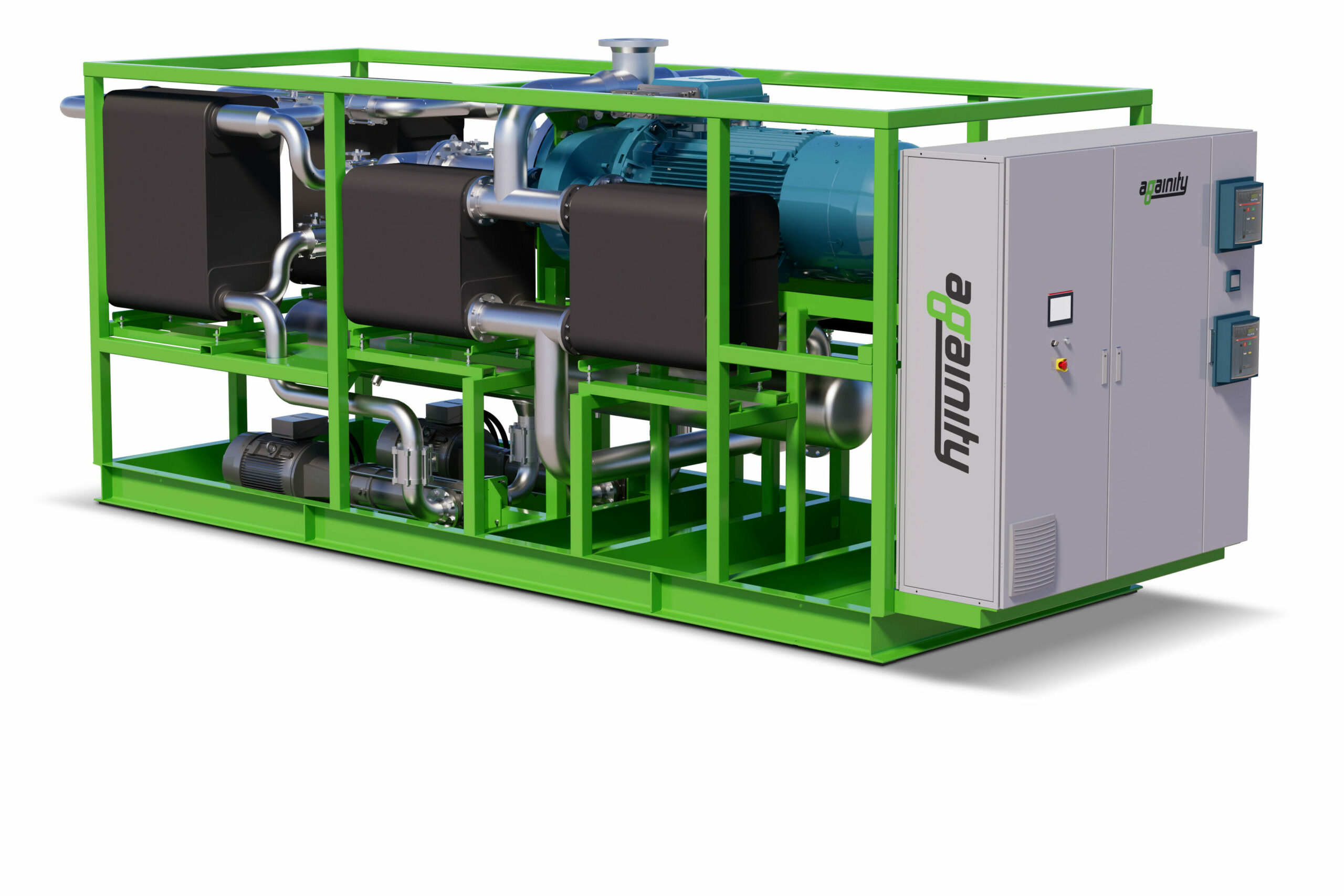

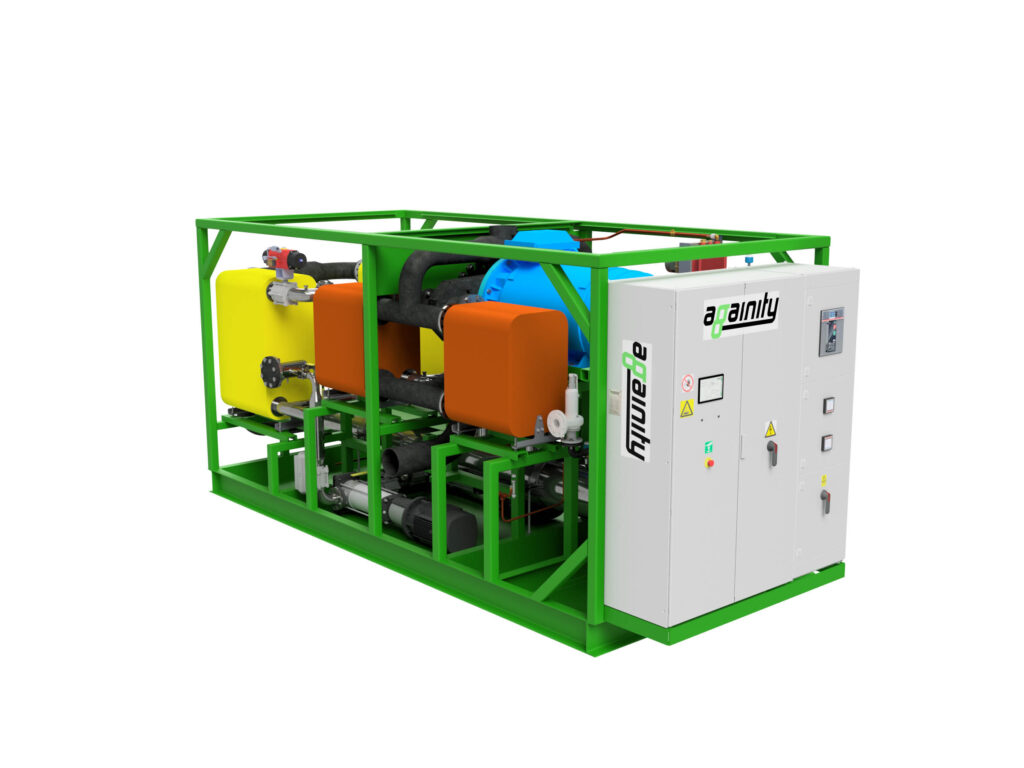

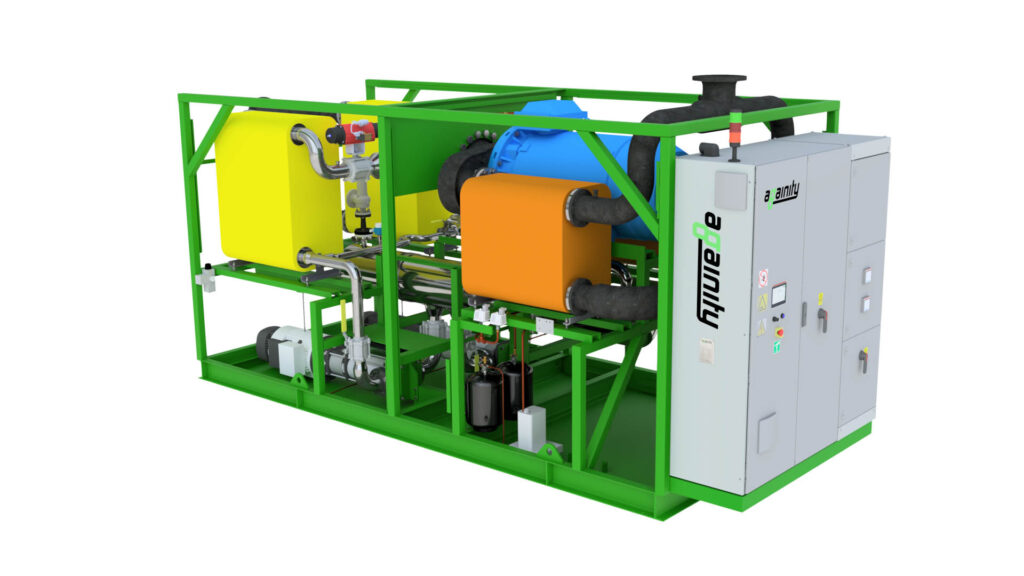

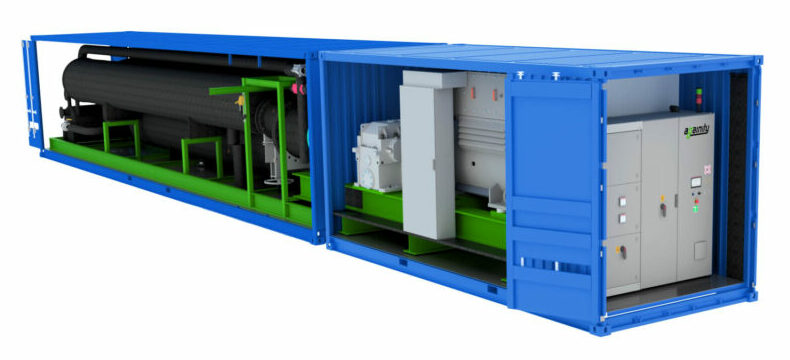

Model	AT100	AT200	AT500	AT10000
Installed capacity:	50–132 kWe	200–355 kWe	200–900 kWe	10 000 kWe
Dimensions¹ (L x W x H):	4,2 x 1,7 x 2,5 m	5,5 x 2,2 x 2,5 m	6,1 x 2,2 x 2,5 m	23 x 3,4 x 3,4 m
Frequency:	50–60 Hz	50–60 Hz	50–60 Hz	50–60 Hz
Weight:	5 ton	9 ton	12 ton	130 ton
Voltage²:	380–415 V	380–415 V	380–415 V	10,7 kV
